Waste Water Heat Recovery

Designed for greater thermal efficiency, it recovers the lost thermal energy by using the heat from the wastewater of one processing operation to pre-heat the incoming water to be used in other operations.

For example, assuming that the incoming fresh water temperature is around 15°C to 18°C (60°F to 65°F), our Heat Recovery System can effectively pre-heat that incoming water to within 3°C to 6°C (5°F to 10°F) of the wastewater stream. That could be up to 60% of the original energy expended. It can also reduce energy consumption required by filtration on plate and frame units.

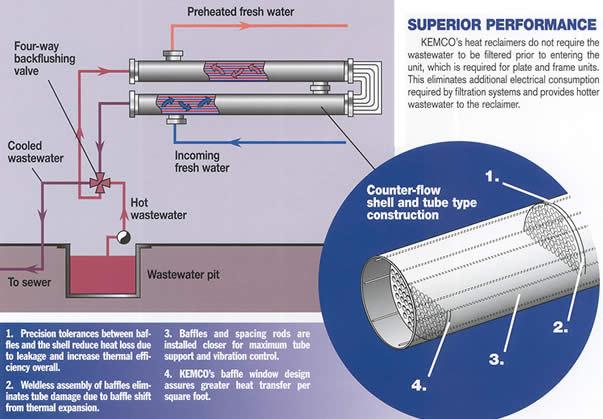

How it Operates

Click image to enlarge
